Choosing the right cable ladder rack tray depends on your specific setup—whether you’re managing cables in a data center, telecom room, or industrial environment. For those seeking a reliable, straightforward solution, the ICC Cable Runway Ladder Rack 5′ offers a solid wall-mounted option with easy installation. If heavy-duty support and expandability are priorities, the ICC Ladder Rack 7-Foot Straight Section provides a robust pathway for larger networks. For industrial applications, the Eaton Series 46 Aluminum Tray excels with its long span and durable material, while the ICC 5′ Rack, 2-Pack offers scalable, cost-effective solutions for data centers. Lastly, for organized patch cables, the Cable Ladder Rack Wire Patch Cord Management Tray helps keep wiring tidy. Each choice involves tradeoffs in length, capacity, and compatibility, making it essential to match your environment and future plans.
Key Takeaways
- The ICC Wall-Mounted Ladder Rack is ideal for small to medium setups with quick installation needs.
- The ICC 7-Foot Straight Section supports larger, scalable networks with heavy load capacity.
- The Eaton aluminum tray is suitable for industrial environments requiring long spans and corrosion resistance.
- The ICC 2-pack offers flexible, scalable solutions for data center cable management.
- Cable patch cord trays are best for organizing and securing patch cables in network setups.
| cable ladder rack tray | Length | Material |
|---|---|---|
| ICC Cable Runway Ladder Rack 5 | 5 feet | 16-gauge cold-rolled steel |
| ICC Ladder Rack 7-Foot Cable R | 7 feet | 16-gauge steel |
| Eaton Series 46 Cable Tray Str | 20 feet | Aluminum |
| ICC Cable Runway Rack | 5 feet | 16-gauge cold-rolled steel |
| Cable Ladder Rack Wire Patch C | — | — |
More Details on Our Top Picks

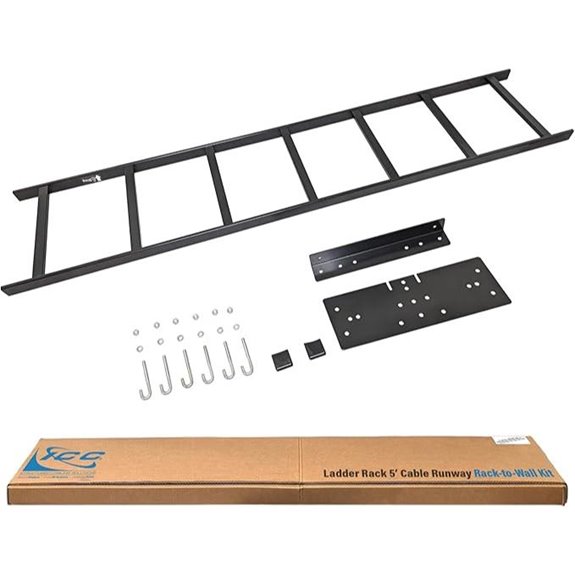

ICC Cable Runway Ladder Rack 5′ Rack-to-Wall Mount Kit, 16-Gauge Steel, Made in USA
This wall-mounted ladder rack stands out for its durable 16-gauge steel construction and straightforward installation. Compared with larger options, it’s less flexible in length but ideal for supporting cables in confined spaces. Its support for future expansion is a key advantage, though it’s limited to a 5-foot length and specific to ICC systems, making it less suitable for complex, large-scale networks.
Pros:- Durable 16-gauge steel construction
- Easy to install with included hardware
- Supports future system expansion
Cons:- Limited to 5-foot length
- Specific to ICC runway systems
Best for: Small to medium network setups requiring quick, reliable wall-mounted cable management
Not ideal for: Large data centers or environments needing longer spans or heavy load support
- Length:5 feet
- Material:16-gauge cold-rolled steel
- Finish:Black powder-coated
- Made in:USA
- Compliance:TIA-compliant, Section 889 compliant
Our verdict“A solid, easy-to-install wall-mount option perfect for smaller installations.”
ICC Ladder Rack 7-Foot Cable Runway Straight Section – 16-Gauge Steel, Horizontal Cable Management for Server Racks & Telecom Systems, 2 Pack
This 7-foot straight section offers a sturdy steel support capable of handling heavy loads up to 500 lbs at 50% fill. It’s better suited for larger server rooms and telecom closets where long spans and expansion capabilities matter. The two-pack provides a cost-effective way to establish a continuous cable pathway, though its bulkiness and need for compatible accessories might complicate installation in tight spaces.
Pros:- Supports heavy loads up to 500 lbs
- Easy to install and expand
- Corrosion-resistant coating
Cons:- Bulkier than smaller options
- Requires compatible accessories for customization
Best for: Large-scale data centers or telecom rooms needing long, scalable pathways
Not ideal for: Small setups or environments with space constraints
- Length:7 feet
- Material:16-gauge steel
- Load Capacity:500 lbs at 50% fill
- Number of Packs:2
Our verdict“A reliable, heavy-duty rack ideal for large, expandable network environments.”
Eaton Series 46 Cable Tray Straight Section, Ladder Type, Aluminum, 9 Rung Spacing, 24″ Wide, 20′ Long
This aluminum ladder tray is designed for industrial environments, offering a long 20-foot span that minimizes the number of connections needed. Its durable aluminum construction resists corrosion and supports a variety of cable types. However, its specific dimensions and limited information on weight capacity mean careful planning is necessary to maximize its utility, especially in complex installations.
Pros:- Durable aluminum construction
- Long 20-foot length reduces connection points
- Supports diverse cable types
Cons:- Limited info on weight capacity
- Requires precise installation due to specific dimensions
Best for: Industrial or large-scale commercial environments needing long, durable cable routes
Not ideal for: Small or lightweight applications where shorter or simpler solutions suffice
- Material:Aluminum
- Width:24 inches
- Length:20 feet
- Side Rail Height:6 inches
- Rung Spacing:9 inches
Our verdict“An excellent choice for industrial settings requiring long, corrosion-resistant spans.”

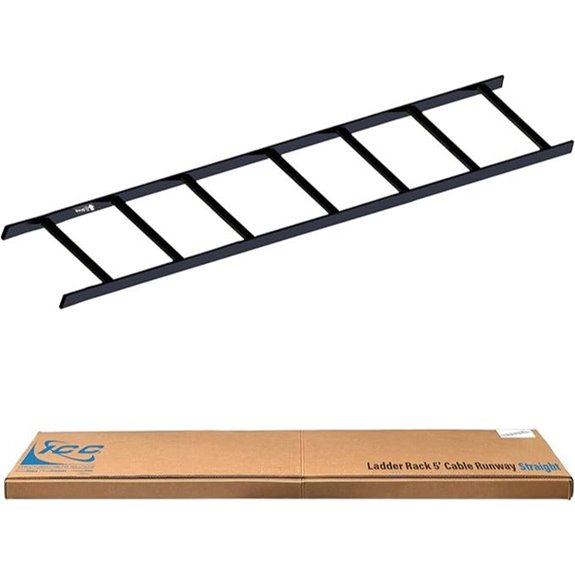

ICC Cable Runway Rack, 5′ Straight Section, 2-Pack
This 2-pack of 5-foot steel sections offers a cost-effective solution for horizontal cable management in data centers. Its high load capacity of 500 lbs supports heavy bundles, and its compatibility with ICC components makes it easy to expand in scalable systems. However, it’s limited to horizontal support only and might require additional hardware for a complete setup.
Pros:- Supports heavy loads up to 500 lbs
- Easy to install and compatible with ICC components
- Scalable for growing network needs
Cons:- Limited to horizontal support only
- Additional hardware needed for complete systems
Best for: Data centers and telecom rooms needing scalable, reliable horizontal cable pathways
Not ideal for: Vertical routing or environments requiring integrated cable support systems
- Length:5 feet
- Width:12 inches
- Material:16-gauge cold-rolled steel
- Finish:Black powder-coated
- Load Capacity:500 lbs
Our verdict“A reliable, scalable choice for horizontal cable management in data centers.”
Cable Ladder Rack Wire Patch Cord Management Tray 24″ HLI2490B
This 24-inch-high patch cord management tray is designed specifically for organizing and securing wire patch cables. Its black finish blends well with professional environments, and its height helps keep cables off the floor or rack surfaces. While it’s effective for wire organization, its limited capacity details and compatibility considerations mean it’s best suited for neatly managed patch cables rather than heavy or bulkier cables.
Pros:- Durable black finish
- Helps organize and secure patch cables
- Easy to install
Cons:- Limited info on weight capacity
- Design may not fit all rack sizes
Best for: Network setups that need organized patch and wire management
Not ideal for: Heavy cable support or environments requiring large capacity
- Color:Black
- Part Number:HLI2490
- Model:HLI2490
- Height:24 inches
How We Picked
Our selection process focused on durability, ease of installation, scalability, and suitability for different environments. I compared materials like steel and aluminum for strength and corrosion resistance, evaluated product lengths and load capacities for scalability, and considered compatibility with typical system components. Cost-effectiveness and user-friendliness were also key factors, ensuring each recommendation offers genuine value for specific cable management needs.
Factors to Consider When Choosing Cable Ladder Rack Tray
Selecting the right cable ladder rack tray requires understanding your environment, cable volume, and future expansion plans. Key factors include material durability, length, load capacity, and compatibility with existing systems. Whether you need a simple wall-mounted rack or a long-span industrial tray, considering these elements can help you make a confident choice.Material and Durability
Steel and aluminum are the most common materials, each offering distinct advantages. Steel provides strength and cost-effectiveness, ideal for most commercial applications, while aluminum offers corrosion resistance, suitable for industrial environments. Your choice should match your environment’s demands and the weight of the cables you’ll support.
Length and Scalability
Shorter lengths, like 5-foot sections, are easier to install but may limit future growth. Longer spans, such as 20-foot trays, reduce the number of connections and improve airflow in large setups. Consider your current needs and potential expansion when choosing length—buying slightly larger than your immediate requirement can save costs later.
Load Capacity and Support
Heavy-duty environments require racks that support hundreds of pounds without sagging or failing. Check the specified load capacity and ensure it exceeds your maximum expected cable weight. Remember, supporting more cables than needed can improve airflow and reduce strain on individual cables and connectors.
Compatibility and Installation
Ensure the rack system integrates well with your existing infrastructure. Some racks are designed for specific systems, like ICC, while others are more universal. Ease of installation varies; look for products with clear hardware instructions and support for future expansion to simplify setup and upgrades.
Frequently Asked Questions
What is a cable ladder rack tray used for?
A cable ladder rack tray is used to organize, support, and route cables in various environments such as data centers, telecom rooms, and industrial facilities. It helps keep cables off the floor, prevents tangling, and allows for proper airflow, which reduces overheating and improves system reliability.
Which material is best for cable ladder racks?
Steel and aluminum are the most common materials. Steel racks are generally more affordable and strong, suitable for supporting heavy cables and loads. Aluminum offers excellent corrosion resistance and is lightweight, making it ideal for industrial or outdoor applications where durability against environmental factors is critical.
How do I choose the right length for my cable ladder rack?
The length should match your current cable management needs while allowing room for future expansion. Shorter lengths are easier to install but may require multiple sections, increasing complexity. Longer spans reduce connection points and improve airflow but require precise measurement and support for their weight. Planning your setup ahead helps in selecting the most suitable length.
Can I use a cable ladder rack for vertical cable management?
While most ladder racks are designed for horizontal cable support, some models are adaptable for vertical routing with additional accessories. For vertical management, consider specific vertical cable management systems or trays that provide better support and organization for cables running along racks or walls.
What maintenance is required for cable ladder racks?
Regular inspection for signs of corrosion, damage, or sagging is recommended, especially in industrial or outdoor environments. Keeping the racks clean and free of debris ensures proper airflow. If the racks are painted or coated, touch-up may be needed over time to maintain corrosion resistance and appearance.
Conclusion
For small to medium setups or those prioritizing quick installation, the ICC Wall-Mounted Ladder Rack offers a straightforward, reliable solution. Large-scale data centers or environments demanding long spans and heavy load support should consider the ICC 7-Foot or Eaton aluminum trays, respectively. Budget-conscious buyers seeking scalable, modular systems will find the ICC 2-pack appealing, while network professionals focused on organized patch cables benefit from dedicated wire management trays. Matching your environment, size, and future growth plans will help you select the best cable ladder rack tray for your needs.
