When it comes to diagnosing motherboard and PC issues, a reliable post diagnostic card is essential. The best models offer quick, accurate feedback with clear displays, but tradeoffs include compatibility and complexity. The 3-in-1 PC Diagnostic Post Test Card stands out as the best overall choice for its versatility and ease of use. Meanwhile, the V8 Multi-Function Universal Post-Diagnostic Test Card offers broader interface support for advanced users. Less expensive models can be tempting, but they often lack durability or comprehensive diagnostics. Keep reading for a detailed breakdown to find the right diagnostic card for your needs.
Key Takeaways
- Top picks balance compatibility with interface support, especially PCIe and PCI/ISA.
- Display clarity, such as 4-digit or LED indicators, significantly impacts usability.
- Versatile options like multi-interface support are better suited for professional or repair environments.
- Cheaper cards often sacrifice build quality or diagnostic detail, making them less reliable long-term.
- Ease of use and clear diagnostics are the most critical factors for beginners and non-expert users.
| 3-in-1 PC Diagnostic Post Test Card for Mini PCI/PCI-E LPC and Laptop |  | Best Compact Multi-Interface Diagnostic Card | Part Number: PCI-E Diagnostic Card | Package Contents: 1 piece | VIEW ON AMAZON | See Our Full Breakdown | |
| POCREATION PCI Motherboard Diagnostic Tester Post Test |  | Best for Professional Motherboard Troubleshooting | Model: PTI8 | Interfaces: Desktop PCI, Mini PCI-E, LPC | Compatibility: Most motherboards with PCI socket, 815, 845, 865, 915, 945, 965 chipsets | VIEW ON AMAZON | See Our Full Breakdown |
| USB PCIe Motherboard Diagnostic Tester Kit for PC, Laptop, Server, Mac, Android |  | Best for Cross-Platform Quick Diagnostics | Compatibility: Desktop PC, Laptop, Server, Mac, Android devices | Connectivity: Standard USB, Micro USB, Type C | Includes: Instruction folder, PDFs, app, multiport adapters | VIEW ON AMAZON | See Our Full Breakdown |
| CHICIRIS Motherboard Diagnostic Card with 4-Digit Dual Post Code Display for Computer Testing |  | Best for Professional Motherboard Diagnosis | Interface: PCI and ISA | Display: 4-digit dual post code | Material: PVC | VIEW ON AMAZON | See Our Full Breakdown |
| 3 in 1 Mini PCI/PCI-E LPC PC Laptop Analyzer Tester Diagnostic Post Test Card Electronic Board Module |  | Best for Laptop and Notebook Diagnostics | Type: Post Test Card | Supported Interfaces: Mini PCI, Mini PCI-E, LPC | Display: 2-Digit LED | VIEW ON AMAZON | See Our Full Breakdown |
| ASHATA PCI/ISA Diagnostic 4-Digit Post Card for Motherboards |  | Best for Compatibility with Legacy Systems | Interface: PCI and ISA | Display: 4-digit hexadecimal | Compatibility: All motherboards with PCI or ISA slots | VIEW ON AMAZON | See Our Full Breakdown |
| PC Motherboard Diagnostic Card 4-Digit PCI/ISA Post Code Analyzer |  | Best for Compact, On-the-Go Diagnostics | Material: Plastic, Metal, Electrical Parts | Color: Green, Black | LED Indicator: 8 x Red LEDs | VIEW ON AMAZON | See Our Full Breakdown |
| Comimark 1Pcs Mini 3-in-1 PC Laptop Analyzer PCI PCI-E LPC Tester Diagnostic Post Test Card |  | Best for Multi-Interface Diagnostic Versatility | Type: Post Test Card | Compatibility: PCI, PCI-E, LPC | Quantity: 1 piece | VIEW ON AMAZON | See Our Full Breakdown |
| V8 Multi-Function Universal Post-Diagnostic Test Card for Laptops and Desktops, Supports PCI-E, LPC, Mini, Debug |  | Best for Multi-Platform Troubleshooting | Compatibility: Laptops and desktops | Supported Interfaces: PCI-E, LPC, Mini | Function: Post-diagnostic testing | VIEW ON AMAZON | See Our Full Breakdown |
| TL611 Pro Mainboard Debug Card, Diagnostic & Analyzer PC Kit, 4 Digit Post Card with LED Indicators for Laptop, PCIe, PC Motherboard Testing |  | Best for Automated Multi-Channel Diagnostics | Channels Detected: Multiple | Compatibility: PCIe, mini PCIe, LPC | Indicators: LED lights for power, CPU, memory | VIEW ON AMAZON | See Our Full Breakdown |
| Post Diagnostic Test Card, Multi-Functional Debugging Card for PCI, LPC, Mini, and Interface Types |  | Best Versatile Diagnostic Tool for Multi-Interface Debugging | Supported Interfaces: PCI, LPC, Mini, Interface Types | Model Number: 3534285431046 | First Available: July 16, 2026 | VIEW ON AMAZON | See Our Full Breakdown |

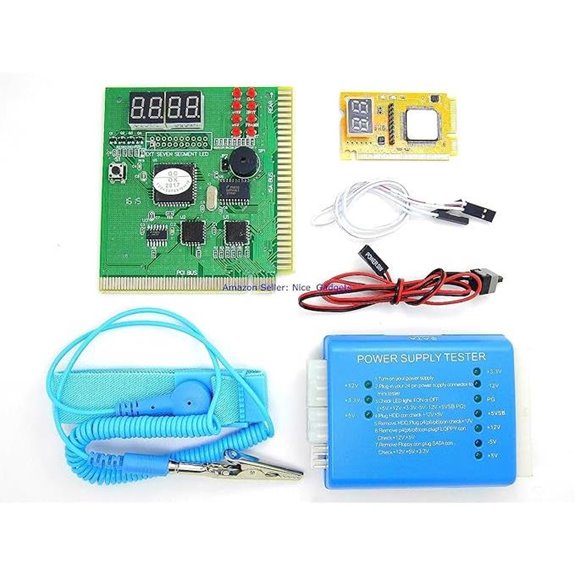

| PC Motherboard and PSU Power Supply Tester Diagnostic Analyzer Starter Kit |  | Best All-in-One Diagnostic Kit for Old PCs and Laptops | Uses: Education, Personal Computer | Design Type: Computer Tower | Additional Features: Works on old Motherboard Standard PCI slot | VIEW ON AMAZON | See Our Full Breakdown |
| PC Diagnostic Card 4 Digit Dual Post Code Display PCI ISA Port Motherboard Tester for Desktop Computer Repair |  | Best for Precise Motherboard Error Code Diagnosis | Item Type: PC Diagnostic Card | Material: PVC | Purpose: Motherboard Repair Tool | VIEW ON AMAZON | See Our Full Breakdown |
| Motherboard Diagnostic Card, Multi-Interface PCIe LPC Post Test Analyzer with LED Indicators |  | Best for Real-Time Multi-Component Monitoring | Interfaces Supported: PCIe, mini PCIe, LPC | Size: 78×51.8mm | Features: LED indicators, plug-and-play, portable | VIEW ON AMAZON | See Our Full Breakdown |
| PC Diagnostic Card 4 Digit Standard PCI ISA Post Code Display | | Best for Broad Compatibility and POST Code Clarity | Interface: PCI and ISA | Display: 4-digit hexadecimal | Compatibility: All motherboards with PCI and ISA slots | VIEW ON AMAZON | See Our Full Breakdown |
| post diagnostic card | Compatibility |
|---|---|
| 3-in-1 PC Diagnostic Post Test | — |
| POCREATION PCI Motherboard Dia | Most motherboards with PCI socket, 815, 845, 865, 915, 945, 965 chipsets |
| USB PCIe Motherboard Diagnosti | Desktop PC, Laptop, Server, Mac, Android devices |
| CHICIRIS Motherboard Diagnosti | — |
| 3 in 1 Mini PCI/PCI-E LPC PC L | — |
| ASHATA PCI/ISA Diagnostic 4-Di | All motherboards with PCI or ISA slots |
| PC Motherboard Diagnostic Card | — |
| Comimark 1Pcs Mini 3-in-1 PC L | PCI, PCI-E, LPC |
| V8 Multi-Function Universal Po | Laptops and desktops |
| TL611 Pro Mainboard Debug Card | PCIe, mini PCIe, LPC |
| Post Diagnostic Test Card | — |
| PC Motherboard and PSU Power S | — |
| PC Diagnostic Card 4 Digit Dua | All motherboards with PCI or ISA slots |
| Motherboard Diagnostic Card | — |
| PC Diagnostic Card 4 Digit Sta | All motherboards with PCI and ISA slots |
More Details on Our Top Picks
3-in-1 PC Diagnostic Post Test Card for Mini PCI/PCI-E LPC and Laptop
This 3-in-1 diagnostic card stands out for its versatility across multiple PCI and LPC slots, making it ideal for troubleshooting a variety of hardware issues without complex setup. Compared to the CHICIRIS Motherboard Diagnostic Card, it offers broader compatibility but lacks detailed diagnostic codes or digital interfaces—limiting depth. Its simple 2-digit display ensures quick readings, yet it doesn’t provide detailed troubleshooting features. The compact design makes it suitable for field technicians needing quick checks, but it’s not ideal for in-depth diagnostics or repair workflows requiring more information.
Pros:- Supports multiple PCI, PCI-E, LPC, and Mini PCI interfaces for broad compatibility
- Simple 2-digit display offers quick, straightforward results
- Compact, lightweight, and easy to use in various environments
Cons:- Limited to detecting errors—no detailed troubleshooting or repair functions
- No digital or advanced diagnostic interface for deeper analysis
Best for: Technicians and hobbyists who need a quick, reliable tool for basic diagnostics across multiple PCI and LPC devices
Not ideal for: Professionals requiring detailed error analysis or advanced troubleshooting features, as it only displays basic codes
- Part Number:PCI-E Diagnostic Card
- Package Contents:1 piece
Our verdict“This pick is perfect for users seeking a straightforward, versatile diagnostic tool for quick hardware checks.”
POCREATION PCI Motherboard Diagnostic Tester Post Test
The POCREATION PTI8 excels in environments where comprehensive diagnostics are essential, supporting a wide array of motherboard interfaces and offering real-time voltage monitoring. Unlike the 3-in-1 PC Diagnostic Post Test Card, it provides detailed diagnostic codes and dual-screen display, making it suitable for complex repair scenarios. Its ability to support many chipsets and produce hundreds of debug codes makes it a powerful tool, but this also means setup can be intimidating for beginners. Its bulkier design and limited info on software updates slightly hinder portability and long-term use.
Pros:- Supports a broad range of motherboards and interfaces including PCI, Mini PCI-E, and LPC
- Real-time voltage and key monitoring provide in-depth hardware insight
- Dual-screen LCD enhances usability and information clarity
- Hundreds of diagnostic codes for thorough troubleshooting
Cons:- Setup can be complex for those unfamiliar with motherboard diagnostics
- Bulkier form factor reduces portability
- Limited information on software updates may affect long-term utility
Best for: Professional repair technicians and advanced users needing detailed motherboard diagnostics across multiple interface types
Not ideal for: Casual users or hobbyists who prefer simple, plug-and-play devices without extensive setup or technical knowledge
- Model:PTI8
- Interfaces:Desktop PCI, Mini PCI-E, LPC
- Compatibility:Most motherboards with PCI socket, 815, 845, 865, 915, 945, 965 chipsets
- Display:Dual-screen LCD
- Includes:Diagnostic debug support for desktop PCI, laptop Mini PCI/E, LPC, cables
Our verdict“This device is ideal for professionals needing detailed, multi-interface motherboard diagnostics in a workshop setting.”
USB PCIe Motherboard Diagnostic Tester Kit for PC, Laptop, Server, Mac, Android
This USB-based diagnostic kit offers a flexible, non-intrusive way to troubleshoot motherboards across a range of devices, including PCs, Macs, and Androids. Unlike the 3-in-1 PCI diagnostic card, it doesn’t require opening the device, drastically reducing repair time. Its support for multiple connectivity options (USB, Micro USB, Type C) and detailed guides make it accessible, but it demands some initial learning to interpret results correctly. Connectivity issues can arise if cables are not properly managed, and reliance on the Android app means compatibility can sometimes be inconsistent.
Pros:- Supports a wide array of devices including desktops, laptops, Macs, and Android devices
- Easy-to-follow guides and videos simplify learning curve
- No disassembly required, saving time and reducing risk of damage
- Accurate fault detection for quick troubleshooting
Cons:- Requires reading guides and understanding app results
- Potential connectivity issues if cables are incorrectly connected
- Dependent on Android app for displaying diagnostic information
Best for: IT professionals and enthusiasts who need fast, non-invasive diagnosis across many device types without disassembly
Not ideal for: Users who prefer hardware-only solutions or need in-depth error codes beyond basic motherboard fault detection
- Compatibility:Desktop PC, Laptop, Server, Mac, Android devices
- Connectivity:Standard USB, Micro USB, Type C
- Includes:Instruction folder, PDFs, app, multiport adapters
- Power Source:USB port, Android charger
Our verdict“This kit is best suited for tech-savvy users seeking fast, cross-platform motherboard diagnostics without opening the devices.”
CHICIRIS Motherboard Diagnostic Card with 4-Digit Dual Post Code Display for Computer Testing
The CHICIRIS diagnostic card stands out for its compatibility with PCI and ISA motherboards, offering a 4-digit dual post code display that helps technicians interpret motherboard errors efficiently. Compared to the 3-in-1 cards, it provides more detailed error codes but doesn’t include digital or LCD interfaces, which limits its diagnostic depth. Its straightforward design makes it suitable for professional repair shops, but interpreting codes requires some expertise, and it’s not suited for users needing advanced troubleshooting features or digital diagnostics.
Pros:- Supports PCI and ISA motherboards for broad legacy compatibility
- 4-digit dual post code display offers clear error indication
- Helps diagnose over 200 motherboard failures efficiently
Cons:- Requires technical knowledge to interpret codes accurately
- Limited to PCI and ISA slots, excluding newer interfaces
- No digital or LCD interface for advanced diagnostics
Best for: Professional motherboard repair technicians working with PCI or ISA boards needing clear, quick error codes
Not ideal for: Beginners or hobbyists, as understanding error codes requires technical knowledge and experience
- Interface:PCI and ISA
- Display:4-digit dual post code
- Material:PVC
- Purpose:Motherboard repair and diagnostics
Our verdict“This tool is best for professionals focused on legacy motherboard diagnostics that require quick, clear error codes.”

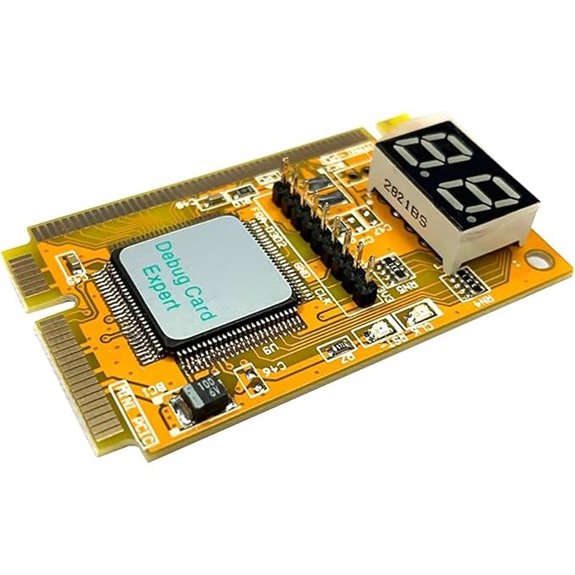

3 in 1 Mini PCI/PCI-E LPC PC Laptop Analyzer Tester Diagnostic Post Test Card Electronic Board Module
This 3-in-1 diagnostic card supports Mini PCI, PCI-E, and LPC interfaces, making it a versatile choice for troubleshooting laptops and notebooks. It displays error codes and motherboard results through a compact 2-digit LED, similar in simplicity to the 3-in-1 PC Diagnostic Post Test Card, but with added support for laptops. Its small size and multi-interface support cater well to IT professionals and enthusiasts working on portable devices, though it remains a diagnostic-only tool. Its reliance on technical knowledge to interpret error codes and lack of a detailed manual could challenge less experienced users.
Pros:- Supports Mini PCI, PCI-E, and LPC for broad laptop compatibility
- Displays detailed error codes for fast diagnosis
- Small, lightweight, and portable design ideal for fieldwork
- Compatible with common BIOS standards and Windows OS
Cons:- Limited to diagnostic functions—no repair features included
- Requires technical skill to interpret error codes
- No detailed user manual included for troubleshooting guidance
Best for: IT professionals and advanced users focusing on portable devices and laptops needing quick, multi-interface diagnostics
Not ideal for: Beginners or those seeking detailed repair features, as it only displays error codes without extra troubleshooting tools
- Type:Post Test Card
- Supported Interfaces:Mini PCI, Mini PCI-E, LPC
- Display:2-Digit LED
- Dimensions:5.0cm x 3.1cm
Our verdict“This pick is well-suited for professionals needing portable, multi-interface diagnostics for laptops and notebooks.”
ASHATA PCI/ISA Diagnostic 4-Digit Post Card for Motherboards
This diagnostic card excels in supporting PCI and ISA motherboards, making it ideal for repairing older systems. Unlike the PC Motherboard Diagnostic Card 4-Digit PCI/ISA Post Code Analyzer, it offers a straightforward 4-digit hexadecimal display without additional features, which keeps it simple but limits troubleshooting for newer tech. Its primary advantage is ease of use with familiar interfaces, but it requires users to interpret hexadecimal error codes manually, which can be challenging for beginners. The device’s compatibility across a broad range of legacy motherboards makes it a reliable choice for technicians working with older hardware. However, it cannot diagnose modern systems with PCIe slots, and interpreting the codes demands some technical knowledge. Best suited for repair shops or technicians dealing with legacy equipment who prioritize straightforward error code display over advanced features.
Pros:- Supports a wide range of PCI and ISA motherboards
- Clear 4-digit hexadecimal display for error codes
- Simple and straightforward to connect and interpret
Cons:- Limited to PCI and ISA slots, not compatible with newer interfaces
- Requires understanding of hexadecimal and POST codes
Best for: Technicians repairing or maintaining older PCI/ISA motherboards
Not ideal for: Users working primarily with modern PCIe systems or seeking detailed troubleshooting features
- Interface:PCI and ISA
- Display:4-digit hexadecimal
- Compatibility:All motherboards with PCI or ISA slots
Our verdict“A solid choice for troubleshooting legacy PCI/ISA systems, especially for users comfortable with hexadecimal codes.”

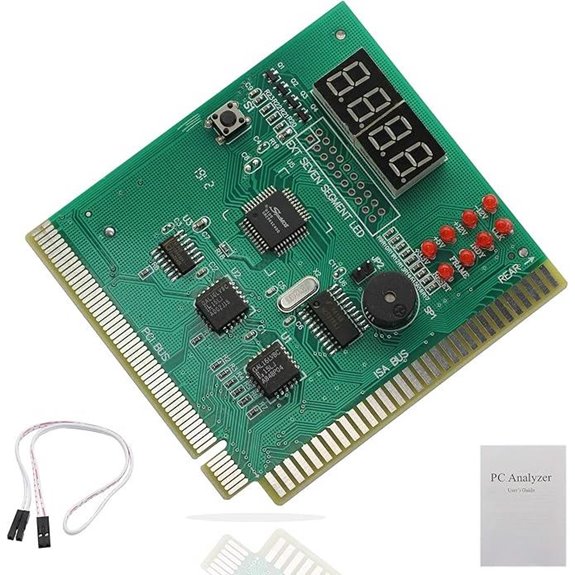

PC Motherboard Diagnostic Card 4-Digit PCI/ISA Post Code Analyzer
This model stands out for its compact design and clear display, making it ideal for quick troubleshooting on PCI and ISA motherboards. Compared with the ASHATA PCI/ISA Diagnostic Card, it offers a similar 4-digit display but adds a lightweight, portable form factor. Its red LED indicators enhance visibility, especially in low-light environments, but it lacks advanced features like USB connectivity or network diagnostics. This pick makes the most sense for technicians or hobbyists who need a reliable, pocket-sized diagnostic tool. The main tradeoff is its limited interface support and absence of modern diagnostic options, which could restrict its utility in newer hardware environments. Best suited for field technicians or hobbyists working with older systems needing quick error code readings without extra bells and whistles.
Pros:- Compact and lightweight for portability
- Clear 4-digit display with bright red LEDs
- Easy to connect and interpret POST codes
Cons:- Limited to PCI and ISA interfaces
- No additional troubleshooting features or connectivity options
Best for: Field technicians or hobbyists diagnosing PCI/ISA motherboards on-site
Not ideal for: Users needing diagnostics for modern systems with PCIe or advanced features
- Material:Plastic, Metal, Electrical Parts
- Color:Green, Black
- LED Indicator:8 x Red LEDs
- Interface Type:PCI Bus, ISA Bus
- Digits:4
- Card Size:9 x 8.2 x 1.5 cm
- Cable Length:30 cm
- Total Weight:50g
Our verdict“A portable, straightforward diagnostic card perfect for quick checks on legacy PCI/ISA systems.”
Comimark 1Pcs Mini 3-in-1 PC Laptop Analyzer PCI PCI-E LPC Tester Diagnostic Post Test Card
This 3-in-1 diagnostic card broadens compatibility by supporting PCI, PCI-E, and LPC slots, making it suitable for diagnosing both desktops and laptops. Compared to the V8 Multi-Function Diagnostic Test Card, it offers more straightforward, dedicated testing for multiple interfaces in a compact package, though it lacks detailed troubleshooting capabilities or advanced features. Its main advantage is versatility, allowing users to switch between different interface types with ease. The tradeoff is that it is primarily a post-test tool, offering limited diagnostic depth or additional connectivity options like USB. It is ideal for techs needing a quick, multi-interface check but not for complex hardware analysis. Best for technicians or hobbyists who require a portable, multi-interface diagnostic tool for various systems.
Pros:- Supports PCI, PCI-E, and LPC interfaces
- Compact and easy to use
- Suitable for desktops and laptops alike
Cons:- Limited to diagnostic testing only
- No advanced troubleshooting features
Best for: Technicians working across different interface types needing quick diagnostics
Not ideal for: Users seeking detailed troubleshooting or network diagnostics
- Type:Post Test Card
- Compatibility:PCI, PCI-E, LPC
- Quantity:1 piece
Our verdict“A flexible, multi-interface diagnostic card ideal for quick checks across various hardware types.”
V8 Multi-Function Universal Post-Diagnostic Test Card for Laptops and Desktops, Supports PCI-E, LPC, Mini, Debug
The V8 diagnostic card offers a broad range of support for both laptops and desktops, encompassing PCI-E, LPC, and Mini interfaces. Compared with the TL611 Pro Mainboard Debug Card, it emphasizes versatility, especially for troubleshooting a variety of hardware configurations. Its main advantage is supporting multiple interfaces in a single device, making it useful for users with diverse systems. However, the lack of detailed specifications and the necessity for technical familiarity could pose challenges. It does not include accessories or comprehensive instructions, which might hinder less experienced users. This pick makes sense for those needing a multi-purpose troubleshooting device that covers both laptops and desktops but isn’t suited for users who require detailed diagnostics or plug-and-play ease. Best for advanced users managing multiple device types and interfaces.
Pros:- Supports multiple interfaces: PCI-E, LPC, Mini
- Suitable for both laptops and desktops
- Versatile troubleshooting capabilities
Cons:- Limited detailed specifications
- Requires technical knowledge to operate effectively
- No included accessories or guide
Best for: Advanced technicians or hobbyists troubleshooting diverse laptop and desktop systems
Not ideal for: Beginners or those seeking detailed step-by-step diagnostics with included instructions
- Compatibility:Laptops and desktops
- Supported Interfaces:PCI-E, LPC, Mini
- Function:Post-diagnostic testing
Our verdict“A highly versatile diagnostic tool best suited for experienced users managing various hardware platforms.”

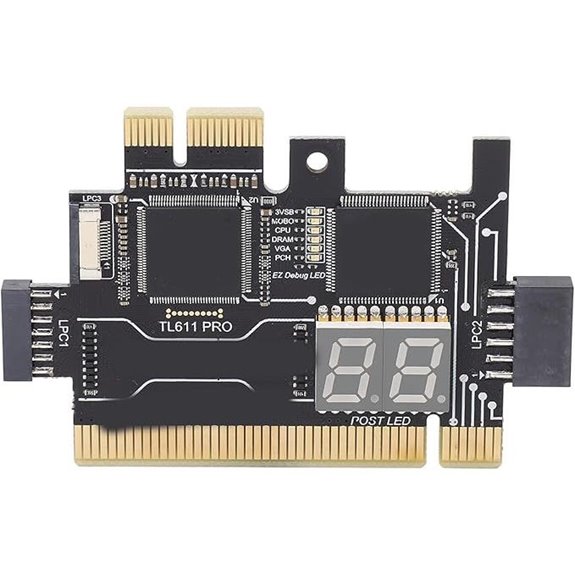

TL611 Pro Mainboard Debug Card, Diagnostic & Analyzer PC Kit, 4 Digit Post Card with LED Indicators for Laptop, PCIe, PC Motherboard Testing
The TL611 Pro stands out for its multi-channel detection, automatic identification, and LED indicators for components like CPU, power, and memory. Compared with the ASHATA PCI/ISA Diagnostic Card, it offers more automation and real-time diagnostics, making it suitable for complex motherboard troubleshooting. Its versatility supports PCIe, mini PCIe, and LPC slots, broadening its utility across many systems. The device’s main strength lies in providing precise, high-level diagnostic information with minimal user input, but it requires familiarity with motherboard diagnostics and lacks detailed user documentation. This tool suits professional repair environments or experienced technicians who value automation and detailed component testing. The tradeoff is the higher learning curve and absence of included software. Best for experienced technicians seeking automated, multi-channel motherboard diagnostics.
Pros:- Supports multiple channels for comprehensive diagnostics
- Automatic power module identification
- LED indicators for critical components
Cons:- Requires technical familiarity with motherboard diagnostics
- Limited details on supported motherboard models
- No included software or detailed user guide
Best for: Experienced motherboard technicians needing detailed, automated diagnostics
Not ideal for: Beginners or users requiring plug-and-play simplicity or detailed instructions
- Channels Detected:Multiple
- Compatibility:PCIe, mini PCIe, LPC
- Indicators:LED lights for power, CPU, memory
- Recognition Rate:High
Our verdict“A sophisticated diagnostic tool ideal for professionals who need automated, multi-channel motherboard testing with minimal manual intervention.”
Post Diagnostic Test Card, Multi-Functional Debugging Card for PCI, LPC, Mini, and Interface Types
This diagnostic card stands out for its ability to support a wide range of interface types including PCI, LPC, and Mini, making it a flexible choice for troubleshooting various hardware setups. Compared with more specialized cards like the Motherboard Diagnostic Card, Multi-Interface PCIe LPC Post Test Analyzer, this model’s multi-functionality simplifies troubleshooting across multiple interface standards, reducing the need for multiple tools. However, it offers limited details on compatibility specifics and lacks information on included accessories or support, which could restrict its utility in complex scenarios. Its compact design makes it easy to handle and store, ideal for technicians needing quick diagnostics across different interface types.
Pros:- Supports multiple interface types for versatile debugging
- Multi-functional design reduces the need for separate tools
- Compact and easy to handle for troubleshooting
Cons:- Limited details on compatibility specifics and accessories
- Potential support or warranty information is not provided
Best for: Technicians who need a flexible, all-in-one debugging tool for various PCI, LPC, and Mini interfaces.
Not ideal for: Users requiring detailed compatibility info or advanced features like digital analysis or integrated software support.
- Supported Interfaces:PCI, LPC, Mini, Interface Types
- Model Number:3534285431046
- First Available:July 16, 2026
Our verdict“This pick makes the most sense for professionals seeking a compact, multi-interface diagnostic card for broad hardware troubleshooting.”
PC Motherboard and PSU Power Supply Tester Diagnostic Analyzer Starter Kit
This starter kit excels at troubleshooting older desktops and laptops, offering a comprehensive set of tools including PCI and PCIe test cards, a PSU tester, and essential accessories. Compared to single-purpose diagnostic cards like the PC Diagnostic Card 4 Digit Dual Post Code Display, this kit’s broad array allows for more complete system checks without swapping parts. Its portability and inclusion of a carrying case add to its convenience, but it requires careful handling to avoid pin damage and is tailored specifically for older PCI and PCIe slots—limiting its use on modern systems. The setup instructions may be complex for users unfamiliar with hardware diagnostics.
Pros:- Includes multiple diagnostic tools and accessories
- Portable case makes it easy to store and transport
- Effective for identifying common hardware issues in older systems
Cons:- Requires careful handling to prevent pin damage
- Designed specifically for older PCI and PCIe slots, not modern interfaces
Best for: Technicians or hobbyists focused on diagnosing issues in legacy desktops and laptops using PCI or PCIe slots.
Not ideal for: Owners of modern systems relying on recent interfaces or those seeking a simple diagnostic tool without accessories.
- Uses:Education, Personal Computer
- Design Type:Computer Tower
- Additional Features:Works on old Motherboard Standard PCI slot
- Item Dimensions:5.5 x 4 x 1.5 inches
- Item Weight:7 ounces
- Warranty & Support:Product Warranty available
Our verdict“This starter kit is perfect for those working with legacy hardware needing comprehensive diagnostics in one package.”
PC Diagnostic Card 4 Digit Dual Post Code Display PCI ISA Port Motherboard Tester for Desktop Computer Repair
This diagnostic card is ideal for professional motherboard repair, offering a clear 4-digit hexadecimal display to identify error codes rapidly. Compared with the Motherboard Diagnostic Card, Multi-Interface PCIe LPC Post Test Analyzer, it’s more straightforward and specifically focused on PCI and ISA slots, making it suitable for detailed error code troubleshooting. Its limitation lies in requiring some technical knowledge to interpret the codes correctly, and it doesn’t offer digital or advanced diagnostics. It’s best suited for experienced technicians who need reliable, quick error code readings.
Pros:- Clear 4-digit hexadecimal error code display
- Compatible with a wide range of PCI and ISA motherboards
- Helps diagnose over 200 common motherboard issues quickly
Cons:- Requires technical knowledge to interpret codes
- Limited to PCI and ISA interfaces without digital enhancements
Best for: Experienced motherboard repair technicians needing accurate error code readings on PCI or ISA slots.
Not ideal for: Beginners or users unfamiliar with motherboard error codes, as interpretation may be complex.
- Item Type:PC Diagnostic Card
- Material:PVC
- Purpose:Motherboard Repair Tool
- Display:4 digit hexadecimal readout
- Interface:PCI and ISA
- Compatibility:All motherboards with PCI or ISA slots
Our verdict“This tool is best suited for professional repair environments where precise motherboard error diagnosis is needed.”
Motherboard Diagnostic Card, Multi-Interface PCIe LPC Post Test Analyzer with LED Indicators
This diagnostic card supports PCIe, mini PCIe, and LPC interfaces, providing comprehensive motherboard diagnostics for desktops and laptops. Its real-time LED indicators monitor power, CPU, memory, graphics, and storage components, offering instant insight into system health. Compared with simpler post code readers like the PC Diagnostic Card 4 Digit Standard PCI ISA Post Code, this model provides continuous monitoring and detailed component status updates, making it ideal for technicians needing ongoing system health checks. The main tradeoff is that it requires some technical skill to interpret the LED signals and perform proper diagnostics, and it’s limited to motherboard-level issues rather than full system testing.
Pros:- Supports multiple motherboard interfaces for versatility
- Real-time monitoring with clear LED indicators
- Portable and includes various connecting tools
Cons:- Requires technical knowledge for effective use
- Limited to motherboard diagnostics, not a full system tester
Best for: Hardware technicians performing detailed motherboard diagnostics on modern desktops or laptops requiring real-time status updates.
Not ideal for: Casual users or those needing a full system diagnostic beyond motherboard health monitoring.
- Interfaces Supported:PCIe, mini PCIe, LPC
- Size:78×51.8mm
- Features:LED indicators, plug-and-play, portable
- Diagnostics:Power, CPU, memory, graphics, storage
Our verdict“This pick is best suited for technicians who need detailed, real-time motherboard health monitoring during repairs.”
PC Diagnostic Card 4 Digit Standard PCI ISA Post Code Display
This standard PCI/ISA diagnostic card offers broad compatibility across many motherboards, displaying current and previous POST error codes via a 4-digit hexadecimal readout. Compared with the PC Diagnostic Card, Dual Post Code Display, this model adds a remote display function, making it easier to view codes without bending over the case. However, its reliance on PCI and ISA slots limits its use on newer systems, and interpreting the codes requires some technical know-how. It’s ideal for technicians who need reliable POST code diagnostics with added convenience of remote viewing.
Pros:- Supports both PCI and ISA interfaces for broad compatibility
- Displays detailed POST error codes for effective troubleshooting
- Includes remote display for easy code viewing
Cons:- Limited to motherboards with PCI or ISA slots
- Requires some technical knowledge to interpret codes
Best for: Experienced technicians troubleshooting a wide range of PCI or ISA motherboards, especially in professional repair shops.
Not ideal for: Beginners or users with modern systems lacking PCI or ISA slots, as compatibility is limited.
- Interface:PCI and ISA
- Display:4-digit hexadecimal
- Compatibility:All motherboards with PCI and ISA slots
- Remote Display:Yes
Our verdict“This diagnostic card is ideal for professionals needing reliable POST code display with added convenience on older systems.”
How We Picked
I evaluated each diagnostic card based on key criteria: interface compatibility, ease of use, display clarity, build quality, and versatility. Products were chosen for their ability to accurately diagnose a range of motherboard and PC issues, and for how straightforward they are to operate. I prioritized models that support multiple interface types like PCI, PCIe, LPC, and ISA, as these cover most common troubleshooting scenarios. Devices with clear, readable displays and reliable construction ranked higher, while budget options were scrutinized for durability and feature set. This approach ensures the lineup includes options for both professional repair shops and home users, with clear distinctions based on their strengths and limitations.Factors to Consider When Choosing Post Diagnostic Card
Choosing the right post diagnostic card depends on several factors beyond just compatibility. Understanding your specific needs, system types, and the level of detail required can help you avoid costly mistakes. Consider how easy the device is to use, the quality of its display, and whether it supports all interfaces you work with. A good diagnostic card should balance features with durability, especially if used frequently. Keep in mind that investing in a slightly more expensive model with broader support can save time and frustration in the long run. Here are the key factors to consider when selecting a diagnostics tool.Compatibility and Interface Support
Ensure the diagnostic card supports all the interface types in your systems, such as PCI, PCIe, LPC, and ISA. A card with broad compatibility reduces the need for multiple tools and simplifies troubleshooting. If you only work with modern PCIe systems, a simpler card might suffice, but for repair shops or tech professionals, a multi-interface model is more cost-effective and versatile. Be wary of cards that only support older or limited interfaces, as they may not be useful for newer hardware. Investing in a card that supports multiple interfaces is typically worth the extra cost for its flexibility.
Display and Readability
Clear, easy-to-read displays are essential for accurate diagnosis, especially during quick troubleshooting. Look for cards with 4-digit or multi-digit LED displays, or digital readouts that are visible from a distance. Some models integrate color-coded LEDs or additional information screens, which can speed up identifying issues. Avoid overly complex or dim displays that make reading codes difficult. The right display can significantly reduce errors and save time during repairs.
Build Quality and Durability
Since diagnostic cards are often used in repair environments, durability matters. Choose models with sturdy casing, quality connectors, and resistant components. Cheaper, plastic-bodied options may break or malfunction after repeated use. Professional-grade cards tend to have reinforced circuits and reliable connectors, ensuring consistent performance over time. A well-built card minimizes downtime and replacement costs, especially if used frequently in a workshop setting.
Ease of Use and Setup
Look for plug-and-play designs that require minimal setup, with straightforward instructions. Some cards automatically detect system type or offer simple toggle switches for different modes. For beginners, intuitive operation is critical to avoid frustration. Advanced users may prefer more detailed diagnostics and customizable options, but even then, clarity and simplicity matter. A user-friendly diagnostic card reduces learning curve and speeds up troubleshooting.
Cost and Value
While budget options may seem attractive, they often sacrifice features or durability. Conversely, premium models tend to offer broader support and more reliable diagnostics, justifying their higher price. Consider how often you’ll use the card and whether your troubleshooting needs warrant an investment in a higher-end model. For casual or occasional use, a mid-range card with essential features can provide excellent value. For professional repair shops, investing in a durable, feature-rich model makes more sense.
Frequently Asked Questions
Can a post diagnostic card help identify hardware failures?
Yes, a diagnostic card can pinpoint specific hardware issues by displaying POST codes that indicate where the system is failing during startup. These codes can reveal problems with memory, CPU, motherboard, or other critical components. However, the accuracy depends on the compatibility and quality of the card, as well as the clarity of its display. While not a replacement for full hardware testing, a POST card offers valuable initial insights that can save time during troubleshooting.
Do I need a diagnostic card for troubleshooting modern PCs?
Most modern PCs still support diagnostic cards, especially those with traditional BIOS or UEFI systems that display POST codes. If your motherboard has a POST port or debug header, a diagnostic card can provide quick feedback on startup issues. For very new systems with advanced diagnostics or integrated management interfaces, software-based tools might be more effective. Typically, a diagnostic card remains a useful, hardware-based fallback when software solutions fail or are unavailable.
Are multi-interface diagnostic cards worth the extra cost?
In most cases, yes. Multi-interface cards support PCI, PCIe, LPC, and ISA, covering a broad range of hardware, from older systems to the latest motherboards. This flexibility makes them suitable for repair shops and tech professionals who work across various hardware generations. While they tend to cost more upfront, their versatility can prevent the need for multiple specialized tools, saving both money and space in your toolkit. For casual users, a simpler, single-interface card may suffice, but for comprehensive diagnostics, multi-interface models are a smarter investment.
How important is display readability on a diagnostic card?
Display readability is critical because it directly impacts how quickly and accurately you can interpret POST codes. Clear, bright, and well-organized displays prevent misreading error codes, especially in low-light environments or when troubleshooting multiple systems. Digital readouts with large digits and color indicators are preferable for their clarity. Poorly visible or ambiguous displays can lead to misdiagnosis, prolonging repair times and increasing frustration, making display quality a key consideration in choosing a diagnostic card.
Should I prioritize durability over features?
Durability is often more important if you plan to use the diagnostic card frequently or in a professional setting. A sturdy, well-made device reduces the risk of failures during critical troubleshooting sessions. However, sacrificing essential features like interface support or display clarity for durability can limit the card’s usefulness. Ideally, select a model that balances both, ensuring it can withstand regular use while providing the diagnostic capabilities you need. For infrequent or casual users, durability might take precedence, but for ongoing professional use, a robust, feature-rich model is preferable.
Conclusion
For most users, the 3-in-1 PC Diagnostic Post Test Card offers the best balance of versatility, ease of use, and value, making it ideal for home technicians and hobbyists. Professionals or repair shops should consider the V8 Multi-Function Universal Post-Diagnostic Test Card for its broad interface support and reliable diagnostics. Budget-conscious buyers can opt for simpler models, but should be aware of potential tradeoffs in durability or feature depth. Beginners will benefit from models with straightforward operation and clear displays, while advanced users needing comprehensive diagnostics should prioritize multi-interface, durable options. Overall, selecting the right diagnostic card depends on your specific hardware environment and troubleshooting needs.
