If you’re exploring PCIe bifurcation risers, you’re likely looking for ways to expand your PCIe slots for multiple GPUs, NVMe drives, or other peripherals. The best overall pick, the PCIe 4.0 x16 Bifurcation Adapter Riser Card, offers a reliable, straightforward solution for most users. For those prioritizing speed, the PCIe 5.0 options deliver cutting-edge performance, albeit at a higher cost. Conversely, budget-conscious buyers should consider simpler, older-generation models that still provide solid bifurcation capabilities. The main tradeoffs involve balancing compatibility, bandwidth, and ease of installation. Continue reading for a detailed breakdown of these options and what makes each unique.
Key Takeaways
- High-speed PCIe 4.0 and 5.0 bifurcation options deliver better performance but come at a higher price point.
- Compatibility with existing hardware is critical; some risers support only specific PCIe versions or slot configurations.
- Cable length and build quality significantly impact installation flexibility and signal stability.
- Power delivery features, such as additional power ports, are essential for stable operation with multiple high-power devices.
- Price varies widely; investing in a well-built, reputable brand reduces the risk of compatibility issues or signal degradation.
| Dual NVMe PCIe Adapter, PCIe 4.0 x16 to Dual NVMe and Additional PCIe x16 (x8 Signal) Expansion Card |  | Best Overall for High-Performance NVMe Expansion | Connector Type: PCIe 4.0 x16 | Number of Ports: 3 | Supports Bifurcation: Yes | VIEW ON AMAZON | See Our Full Breakdown |
| JMT PCIe 4.0 x16 1 to 2 Expansion Card with Bifurcation and Power Supply Port |  | Best for Compatibility and Power Support | Protocol: PCIe 4.0 | Slots: x16 to x8x8 | Power Supply Port: CPU4P | VIEW ON AMAZON | See Our Full Breakdown |
| PCIe 4.0 x16 Bifurcation Adapter Riser Card, 65cm Length, Plug & Play |  | Best for High-Speed Data Transfer and Flexibility | Length: 65cm | Bandwidth: 256Gbps | Standards Supported: PCIe 2.0, 3.0, 4.0 | VIEW ON AMAZON | See Our Full Breakdown |
| 10Gtek Dual SlimSAS 8i to PCIe 4.0 x16 Slot Adapter, SFF-8654 to PCIe x16 Riser Card with 6-Pin Power Port |  | Best for Enterprise and Server-Grade Expansion | Bandwidth: PCIe 4.0 x16, up to 32GB/s | Connectors: Dual SlimSAS 8i (SFF-8654) | Power: 6-pin 12V | VIEW ON AMAZON | See Our Full Breakdown |
| JMT PCIe 4.0 x16 to x8 x8 MCIO Bifurcation Adapter Riser Card with Power Cable |  | Best for Reliable PCIe Bifurcation and Extensibility | Speed Bandwidth: PCIe 4.0 x16, 256 Gbps | Backward Compatibility: Gen 3, Gen 2 | Wire Length: 50cm, 100cm | VIEW ON AMAZON | See Our Full Breakdown |
| Sintech PCIe 4.0 16X to 2 Ports PCIe 8X/16X Expansion Card |  | Best Overall for Bifurcation Flexibility | Compatibility: Most PCIe X1, X4, X8, X16 cards; Motherboards supporting PCIe x16 Bifurcation (e.g., X299, X399, most servers) | Slot Requirement: PCIe 4.0/3.0 x16 slot on motherboard | Bifurcation Support: Yes, BIOS setting required as ‘PCI-e x8x8’ | VIEW ON AMAZON | See Our Full Breakdown |
| PCIe 5.0 x16 to MCIO 8i SFF-TA-1016 Adapter Card |  | Best for High-Speed Data Transfer and Protocol Compatibility | Interface: PCIe 5.0 x16 to MCIO 8i | Supported Protocols: SAS 3.0/4.0, PCIe Gen 3/4/5, 25G Ethernet, 56GT/s PAM4 | Compatibility: Motherboards with detachable PCI-E channels | VIEW ON AMAZON | See Our Full Breakdown |
| SinLoon PCIe 5.0 X16 Expansion Card with Bifurcation and M.2 Support |  | Best for M.2 and GPU Expansion in PCIe 5.0 Systems | Model Number: SL2025142 | Interface: PCIe 5.0 x16 | Bifurcation: x8 + x4 + x4 | VIEW ON AMAZON | See Our Full Breakdown |
| PCI Express X16 to Dual M.2 NVMe Adapter with PCIe x8 Slot Support |  | Best Compact Dual NVMe Expansion for Bifurcation Support | Interface: PCIe 4.0 x16 | Supports: Dual M.2 NVMe SSDs, additional PCIe x8 slot | Motherboard Compatibility: Most server and X299, X399 chipsets supporting PCIe bifurcation | VIEW ON AMAZON | See Our Full Breakdown |
| JMT PCIe 4.0 x16 to 2 x8 Expansion Card with CPU4P Power Port |  | Best for Full Bandwidth Bifurcation with Power Support | PCIe Version: 4.0 | Slots: 1 to 2 bifurcation | Slot Spacing: 20mm | VIEW ON AMAZON | See Our Full Breakdown |
| JMT PCIe 4.0 x16 to 2 x8 Expansion Card with CPU4P Power Port |  | Best for Stable Dual x8 Expansion in PCIe 4.0 Systems | PCIe Version: 4.0 | Number of Slots: 2 x8 | Slot Spacing: 20mm | VIEW ON AMAZON | See Our Full Breakdown |
| JMT PCIe 4.0 x16 to x8 x8 MCIO Bifurcation Adapter Riser Card with Power Cable | | Best for Flexible PCIe Lane Bifurcation and Custom Configurations | Speed Bandwidth: PCIe 4.0 x16, 256 Gbps | Wire Length: 50cm, 100cm | Power Supply: Includes SATA power adapter cable, 12V connection | VIEW ON AMAZON | See Our Full Breakdown |
| pcie bifurcation riser | Compatibility |
|---|---|
| Dual NVMe PCIe Adapter | — |
| JMT PCIe 4.0 x16 1 to 2 Expans | Supports PCIe bifurcation, Gen 3 and 4 |
| PCIe 4.0 x16 Bifurcation Adapt | Motherboards supporting PCIe 4.0 |
| 10Gtek Dual SlimSAS 8i to PCIe | PCIe 3.0/4.0, Windows, Linux, VMware |
| JMT PCIe 4.0 x16 to x8 x8 MCIO | — |
| Sintech PCIe 4.0 16X to 2 Port | Most PCIe X1, X4, X8, X16 cards; Motherboards supporting PCIe x16 Bifurcation (e.g., X299, X399, most servers) |
| PCIe 5.0 x16 to MCIO 8i SFF-TA | Motherboards with detachable PCI-E channels |
| SinLoon PCIe 5.0 X16 Expansion | — |
| PCI Express X16 to Dual M.2 NV | — |
| JMT PCIe 4.0 x16 to 2 x8 Expan | — |
| JMT PCIe 4.0 x16 to 2 x8 Expan | — |
| JMT PCIe 4.0 x16 to x8 x8 MCIO | Supports motherboard bifurcation PCIe splitting |
More Details on Our Top Picks

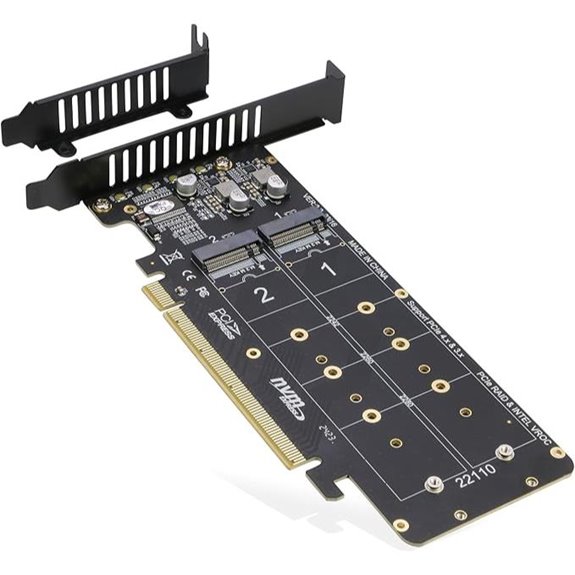

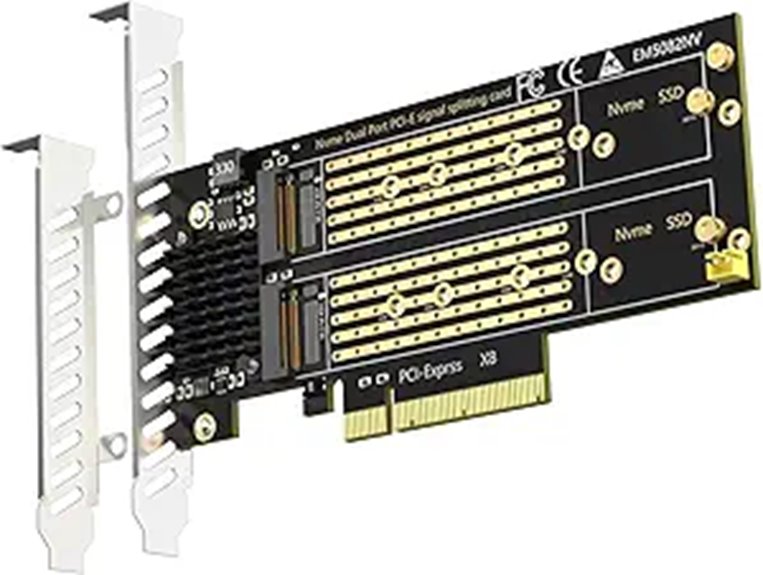

Dual NVMe PCIe Adapter, PCIe 4.0 x16 to Dual NVMe and Additional PCIe x16 (x8 Signal) Expansion Card
This adapter stands out for its ability to add two NVMe SSDs through a single PCIe 4.0 x16 slot, making it ideal for users who need fast storage with minimal motherboard support. Compared with the JMT PCIe 4.0 x16 1 to 2 Expansion Card, it offers more straightforward support for dual NVMe drives, but it doesn’t support hardware RAID, which could be a limitation for some. Its support for multiple SSD sizes and motherboards with bifurcation makes it versatile, while LED indicators provide useful status updates. However, it relies heavily on motherboard bifurcation support and lacks hardware RAID options, making it less flexible for RAID setups or older boards.
Pros:- Supports two NVMe SSDs via a single PCIe x16 slot
- Compatible with various SSD sizes and motherboards
- LED indicators for SSD status
Cons:- No hardware RAID support
- Requires motherboard support for bifurcation
- Limited to NVMe SSDs, excludes SATA M.2 drives
Best for: Power users needing high-speed NVMe storage expansion on compatible motherboards with bifurcation support
Not ideal for: Users seeking hardware RAID support or those with non-bifurcation-capable motherboards
- Connector Type:PCIe 4.0 x16
- Number of Ports:3
- Supports Bifurcation:Yes
- Motherboard Compatibility:Most Server, X299, X399
- SSD Sizes Supported:30x22mm, 42x22mm, 60x22mm, 80x22mm, 110x22mm
- Supports RAID:Software RAID only
Our verdict“This card is perfect for users who need fast NVMe storage expansion on a compatible motherboard but don’t require hardware RAID.”

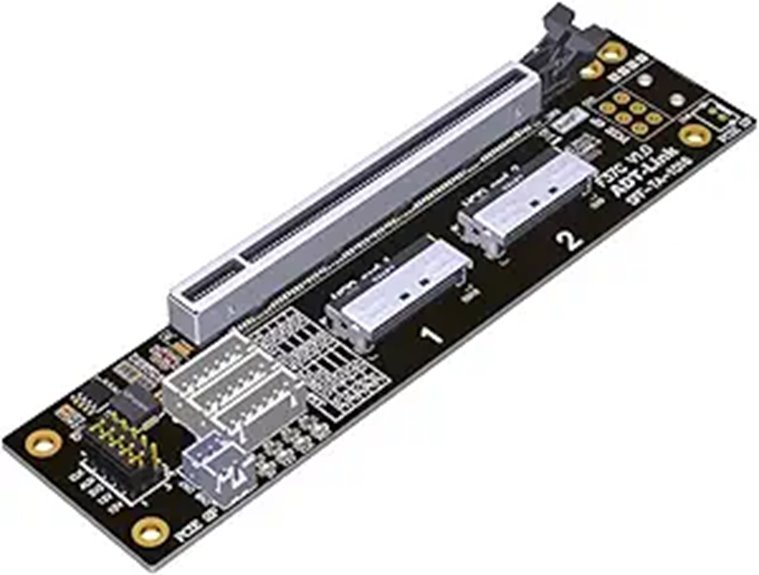

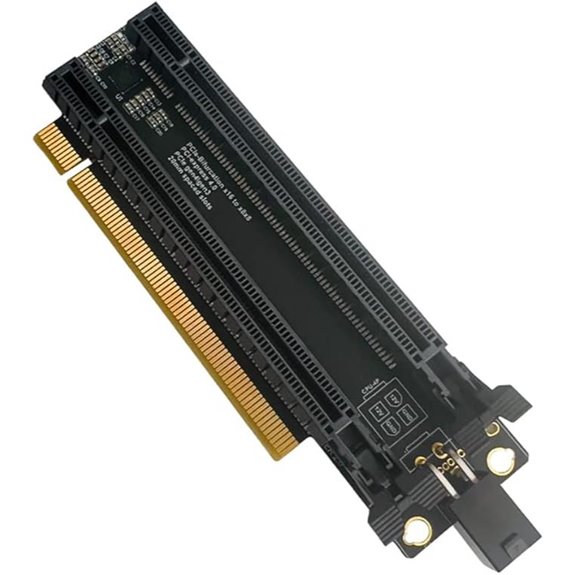

JMT PCIe 4.0 x16 1 to 2 Expansion Card with Bifurcation and Power Supply Port
The JMT PCIe 4.0 x16 splitter excels at supporting full bandwidth connections for two x8 slots, making it suitable for multi-GPU setups and high-performance PCIe devices. Unlike the PCIe 4.0 x16 Bifurcation Adapter Riser Card, it includes a dedicated power port, which improves stability during demanding workloads. Support for PCIe Gen 3 and 4 ensures broad compatibility, but it demands BIOS configuration to enable bifurcation, which can be a hurdle for less experienced builders. Its auxiliary power port addresses power needs but adds complexity to installation, especially for newcomers.
Pros:- Supports full PCIe 4.0 bandwidth
- Includes auxiliary 6-pin power port
- Compatible with PCIe Gen 3 and 4
Cons:- Requires BIOS configuration for bifurcation
- Power limitations may necessitate extra power sources
- Installation complexity for inexperienced users
Best for: Enthusiasts building multi-GPU systems or needing reliable bifurcation with power support
Not ideal for: Beginners without BIOS tweaking experience or users with limited BIOS options
- Protocol:PCIe 4.0
- Slots:x16 to x8x8
- Power Supply Port:CPU4P
- Compatibility:Supports PCIe bifurcation, Gen 3 and 4
- Additional Features:Dust plug, clock splitting IC, power on LED
- Slot Spacing:20mm
Our verdict“Ideal for advanced users who need reliable bifurcation with stable power delivery for multi-GPU or high-speed PCIe devices.”

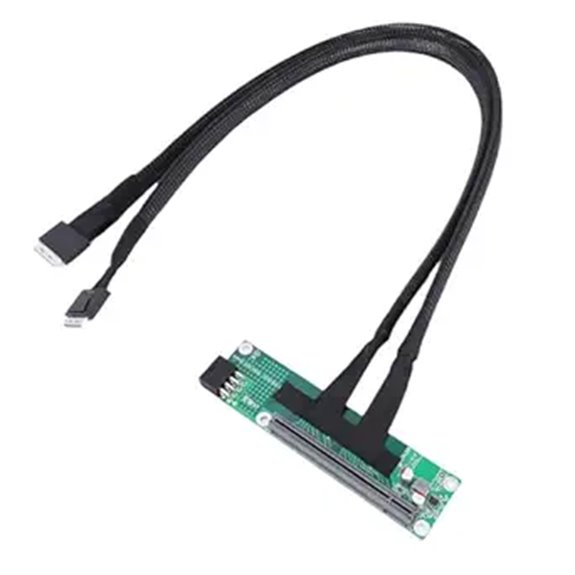

PCIe 4.0 x16 Bifurcation Adapter Riser Card, 65cm Length, Plug & Play
This bifurcation card is designed for users needing to maximize data transfer speeds up to 256Gbps, with a flexible split cable setup that adapts to various motherboard layouts. Its compatibility across PCIe 2.0, 3.0, and 4.0 makes it versatile, surpassing simpler options like the JMT PCIe 4.0 x16 to x8 x8 MCIO Bifurcation Adapter in connectivity range. Its plug-and-play nature simplifies installation, but it demands a good grasp of technical setup, especially for optimal bifurcation and cable management. The lack of included accessories may require additional purchases.
Pros:- Supports data speeds up to 256Gbps
- Flexible split cable design for various rigs
- Plug-and-play, no driver needed
Cons:- Requires technical knowledge for setup
- No included accessories or mounting hardware
- Limited to users needing PCIe expansion cards
Best for: Technology-savvy users seeking high-speed PCIe expansion with flexible cable options
Not ideal for: Beginners or those who prefer turnkey solutions with included accessories
- Length:65cm
- Bandwidth:256Gbps
- Standards Supported:PCIe 2.0, 3.0, 4.0
- Compatibility:Motherboards supporting PCIe 4.0
- Design:Split cable, bifurcation support
- Plug and Play:Yes
Our verdict“Best suited for experienced builders aiming for maximum transfer speeds and flexible configurations.”
10Gtek Dual SlimSAS 8i to PCIe 4.0 x16 Slot Adapter, SFF-8654 to PCIe x16 Riser Card with 6-Pin Power Port
This adapter transforms dual SlimSAS 8i connectors into a PCIe 4.0 x16 slot, supporting high bandwidth up to 32GB/s, which makes it ideal for server environments or enterprise storage solutions. Its support for multiple splitting modes (x4, x8, x16) offers flexibility beyond typical bifurcation cards like the JMT PCIe 4.0 x16 to x8 x8 MCIO. The dedicated 6-pin power port enhances stability during intensive workloads, but it does not support hot swapping, and installation can be complex, requiring careful power management. It’s best suited for professional setups rather than consumer gaming PCs.
Pros:- Supports full PCIe 4.0 x16 bandwidth
- Multiple splitting modes for diverse configurations
- Includes 6-pin power port for stability
Cons:- No hot swapping support
- Installation complexity for non-technical users
- Requires proper power connection to prevent damage
Best for: Server administrators and enterprise storage setups needing high bandwidth and flexible port splitting
Not ideal for: Casual gamers or users unfamiliar with enterprise-grade hardware and power configurations
- Bandwidth:PCIe 4.0 x16, up to 32GB/s
- Connectors:Dual SlimSAS 8i (SFF-8654)
- Power:6-pin 12V
- Splitting modes:x4, x8, x16
- Compatibility:PCIe 3.0/4.0, Windows, Linux, VMware
- Hot Swapping:No
Our verdict“Designed for professional environments requiring robust, high-speed PCIe expansion with flexible configurations.”

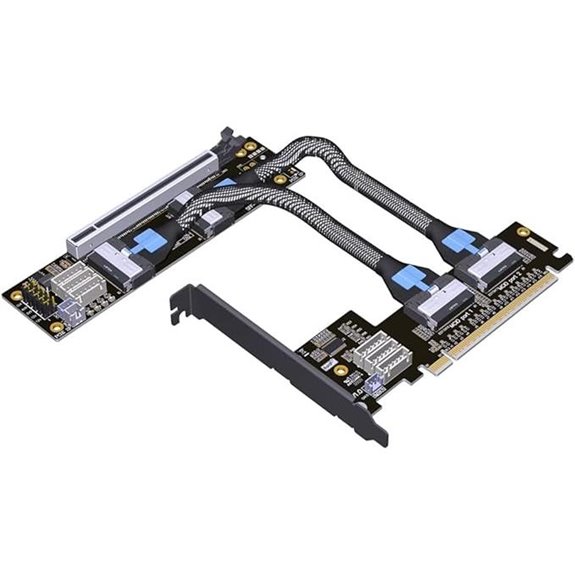

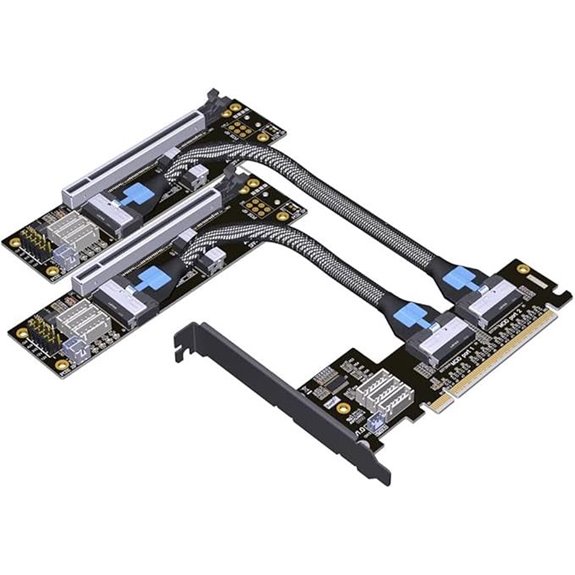

JMT PCIe 4.0 x16 to x8 x8 MCIO Bifurcation Adapter Riser Card with Power Cable
This bifurcation adapter is built for high-speed, reliable PCIe lane splitting, supporting speeds up to 256 Gbps, and includes a dedicated power cable for added stability. Compared to other bifurcation options like the PCIe 4.0 x16 Bifurcation Adapter Riser Card, its robust construction with gold-plated pins and four-layer PCB enhances durability and performance. Its flexibility with backward compatibility and included power cable makes it a solid choice for extending graphics or PCIe devices, but it requires motherboard support for bifurcation, which can be a limiting factor for some systems. Installation complexity and cable length options may also restrict certain builds.
Pros:- Supports PCIe 4.0 speeds up to 256 Gbps
- Includes power cable for stability
- Supports backward compatibility with PCIe Gen 3/2
Cons:- Requires motherboard support for bifurcation
- Installation can be complex for novices
- Limited cable length options
Best for: Advanced users needing dependable lane bifurcation with stable power for high-performance PCIe devices
Not ideal for: Entry-level builders or systems without bifurcation support in BIOS
- Speed Bandwidth:PCIe 4.0 x16, 256 Gbps
- Backward Compatibility:Gen 3, Gen 2
- Wire Length:50cm, 100cm
- Power Supply:Includes SATA power cable
- Connector Material:PA10T/LCP, gold-plated
- Cable Type:UL certified, flat FFC
Our verdict“Suitable for experienced builders seeking a durable, high-speed bifurcation solution with reliable power delivery.”

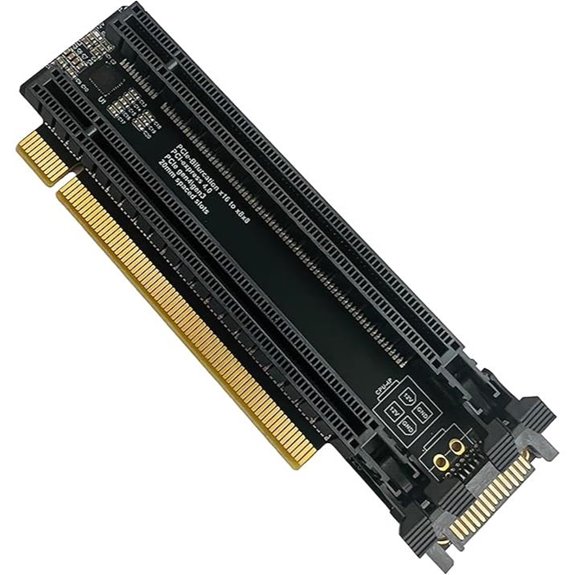

Sintech PCIe 4.0 16X to 2 Ports PCIe 8X/16X Expansion Card
This card stands out for its ability to add two PCIe cards simultaneously, making it highly suitable for complex server setups or high-performance workstations. Compared with the JMT PCIe 4.0 x16 1 to 2 Expansion Card, it offers more reliable bifurcation support on compatible motherboards, thanks to its high-quality 4-layer PCB. However, it relies heavily on motherboard BIOS settings and does not support hardware RAID, which can be a limitation for users seeking complete hardware control. Its broad compatibility with PCIe x1, x4, x8, and x16 cards on supported motherboards makes it a versatile choice. The main tradeoff is that it requires BIOS configuration and is limited to motherboards that support PCIe x16 bifurcation.
Pros:- Supports adding two PCIe cards simultaneously
- High-quality 4-layer PCB for durability
- Compatible with a wide range of motherboards supporting bifurcation
Cons:- Does not support hardware RAID, only software RAID
- Requires BIOS configuration for bifurcation support
- Limited to motherboards that support PCIe x16 bifurcation
Best for: System builders needing flexible bifurcation support on compatible server or workstation motherboards
Not ideal for: Casual users or those with non-bifurcation-enabled motherboards, as it requires BIOS setup and specific motherboard features
- Compatibility:Most PCIe X1, X4, X8, X16 cards; Motherboards supporting PCIe x16 Bifurcation (e.g., X299, X399, most servers)
- Slot Requirement:PCIe 4.0/3.0 x16 slot on motherboard
- Bifurcation Support:Yes, BIOS setting required as ‘PCI-e x8x8’
- PCB Material:4-layer PCB
- Gold Sinking Thickness:5U
Our verdict“This card suits advanced users seeking reliable bifurcation with broad motherboard support, provided BIOS setup is manageable.”
PCIe 5.0 x16 to MCIO 8i SFF-TA-1016 Adapter Card
This adapter excels in environments where high-speed data transfer and multi-protocol support are crucial, such as enterprise storage or high-performance computing. Compared to SinLoon’s PCIe 5.0 x16 Expansion Card, it offers support for SAS, PCIe, and Ethernet protocols, making it more versatile for diverse data needs. Its ability to support up to 24 Gbps transfer speeds surpasses many alternatives, but it requires a motherboard with detachable PCIe channels, which not all systems have. Installation complexity is higher due to its advanced protocol support and power requirements. This makes it better suited for users with compatible hardware seeking maximum protocol flexibility and throughput.
Pros:- Supports high-speed data transfer up to 24 Gbps
- Compatible with multiple protocols including SAS, PCIe, and Ethernet
- Built-in high-power DC modules for stable operation
- Supports connecting multiple SSDs via MCIO interface
Cons:- Requires motherboard with detachable PCIe channels
- Installation can be complex for non-technical users
Best for: IT professionals and enterprise users needing multi-protocol high-speed expansion
Not ideal for: Home users or those with non-detachable PCIe channels, since compatibility and installation are complex
- Interface:PCIe 5.0 x16 to MCIO 8i
- Supported Protocols:SAS 3.0/4.0, PCIe Gen 3/4/5, 25G Ethernet, 56GT/s PAM4
- Compatibility:Motherboards with detachable PCI-E channels
- Data Transfer Speed:Up to 24 Gbps
Our verdict“This adapter is ideal for demanding enterprise environments where protocol versatility and speed are priorities, and users are comfortable with complex setups.”
SinLoon PCIe 5.0 X16 Expansion Card with Bifurcation and M.2 Support
Designed for users wanting to maximize PCIe 5.0 bandwidth, this card splits a single x16 slot into x8 and two x4 lanes, supporting fast NVMe SSDs and low-profile GPUs. Compared to the JMT PCIe 4.0 x16 to 2 x8, it offers newer PCIe 5.0 speeds and M.2 support, but requires BIOS support for bifurcation—something not guaranteed on all motherboards. Its inclusion of dual M.2 slots and support for various sizes enhance storage options, though customer satisfaction ratings suggest variability in performance or compatibility issues. The separate low-profile bracket must be purchased, adding to installation complexity. This pick makes sense for those with PCIe 5.0-ready systems seeking flexible storage and GPU expansion.
Pros:- Supports high-speed PCIe 5.0 devices
- Includes dual M.2 slots for NVMe SSDs
- Backward compatible with PCIe 4.0/3.0
- LED indicators for status monitoring
Cons:- Requires BIOS support for bifurcation, which may not be available
- Low-profile bracket must be purchased separately
- Customer reviews indicate moderate satisfaction (3.6/5 stars)
Best for: Enthusiasts with PCIe 5.0 motherboards wanting flexible M.2 and GPU options
Not ideal for: Users with older motherboards lacking bifurcation support or BIOS updates, as compatibility could be limited
- Model Number:SL2025142
- Interface:PCIe 5.0 x16
- Bifurcation:x8 + x4 + x4
- Supports NVMe SSDs:Yes
- M.2 Sizes Supported:2230, 2242, 2260, 2280, 22110
Our verdict“This card works best for PCIe 5.0 systems aiming to expand storage and GPU options, provided BIOS support is available.”

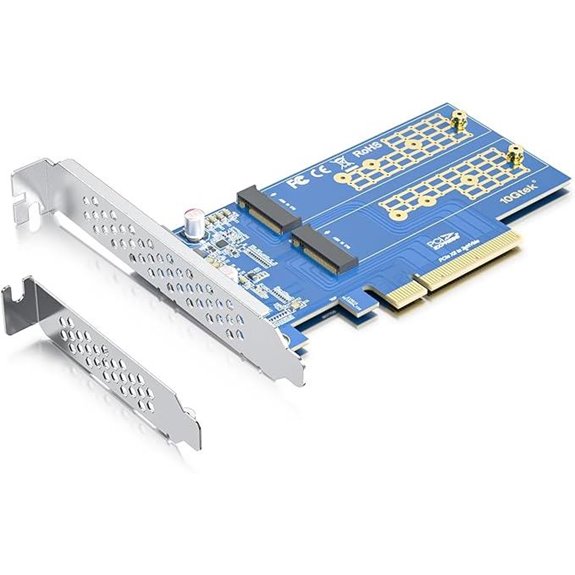

PCI Express X16 to Dual M.2 NVMe Adapter with PCIe x8 Slot Support
This adapter offers a compact solution to add two NVMe SSDs via PCIe 4.0 x16, while also supporting an additional PCIe x8 slot, making it suitable for high-performance servers and workstations. Compared with Sintech’s PCIe 4.0 16X to 2 Ports PCIe 8X/16X Expansion Card, it emphasizes dual M.2 NVMe support with indicator LEDs, providing a space-efficient way to expand storage. Its design is tailored for systems that support bifurcation and need dual NVMe SSDs, but it does not support hardware RAID—only software RAID—limiting its use for certain redundancy needs. Compatibility with non-bifurcation systems is a concern, so this is best for specialized builds.
Pros:- Supports dual NVMe SSDs with LED indicators
- Compact, space-efficient design
- Expands PCIe slots on bifurcation-capable motherboards
Cons:- No hardware RAID support, only software RAID
- Requires motherboard support for bifurcation
- Limited to PCIe bifurcation-compatible systems
Best for: High-performance server or workstation users needing dual NVMe SSDs with space-saving design
Not ideal for: Casual or non-bifurcation systems, as it requires motherboard support for bifurcation
- Interface:PCIe 4.0 x16
- Supports:Dual M.2 NVMe SSDs, additional PCIe x8 slot
- Motherboard Compatibility:Most server and X299, X399 chipsets supporting PCIe bifurcation
- M.2 Sizes Supported:30x22mm, 42x22mm, 60x22mm, 80x22mm, 110x22mm
- Raid Support:Software RAID only
Our verdict“This adapter suits users needing dual NVMe SSDs in space-constrained setups with bifurcation support, but not those seeking hardware RAID options.”
JMT PCIe 4.0 x16 to 2 x8 Expansion Card with CPU4P Power Port
This expansion card supports bifurcation into two x8 slots on PCIe 4.0 systems, maintaining full bandwidth and ensuring high-speed data transfer. Compared with the Sintech PCIe 4.0 16X to 2 Ports card, it offers an auxiliary CPU power port, which can deliver more stable power for demanding configurations. Built with a durable gold-plated connector and dust plug, it is designed for professional-grade systems. However, it depends on motherboard BIOS settings and specific BIOS support for bifurcation, which can complicate installation. Its focus on full PCIe 4.0 support makes it a go-to choice for power users needing maximum bandwidth.
Pros:- Supports full PCIe 4.0 bandwidth for high-speed transfers
- Bifurcation into two x8 slots for flexible expansion
- Durable gold-plated connector and dust protection
Cons:- Requires compatible motherboard BIOS settings
- Installation may be complex for beginners
- Specific circumstances needed for full GEN4 operation
Best for: High-performance workstations and servers requiring full PCIe 4.0 bandwidth and reliable power delivery
Not ideal for: Entry-level or consumer-grade systems without BIOS bifurcation support, where setup may be problematic
- PCIe Version:4.0
- Slots:1 to 2 bifurcation
- Slot Spacing:20mm
- Power Supply Port:CPU4P
- Supports:GEN3 / GEN4
Our verdict“This card is ideal for demanding systems needing maximum PCIe 4.0 bandwidth and stable power, suited for advanced users comfortable with BIOS setup.”
JMT PCIe 4.0 x16 to 2 x8 Expansion Card with CPU4P Power Port
This PCIe 4.0 x16 to dual x8 expansion card excels at providing full bandwidth for two x8 slots, making it ideal for users needing reliable high-speed expansion with added stability. Unlike the JMT PCIe 4.0 x16 to x8 x8 MCIO Bifurcation Adapter, which emphasizes flexible lane splitting, this model focuses on consistent, high-performance dual x8 outputs, thanks to its robust power support via the CPU4P port. The inclusion of gold-plated connectors ensures durability, but compatibility relies heavily on motherboard BIOS support, and users may need to tweak BIOS settings to enable PCIe 4.0 mode fully. Installation complexity might be moderate, especially for those unfamiliar with BIOS configurations, and its specific motherboard requirements could limit use in some setups. Overall, this pick suits those who prioritize stable dual x8 expansion over flexible lane management, with a notable emphasis on bandwidth and reliability.
Pros:- Supports full PCIe 4.0 bandwidth for both x8 slots
- Includes CPU4P auxiliary power port for enhanced stability
- Gold-plated connectors improve longevity and signal integrity
- Compatible with PCIe 3.0 and 4.0 standards under specific conditions
Cons:- Requires specific BIOS settings to enable PCIe 4.0 mode
- Compatibility depends heavily on motherboard support for bifurcation
- Installation may be challenging for users unfamiliar with BIOS adjustments
Best for: Enthusiasts or professionals expanding high-bandwidth PCIe devices in compatible high-end motherboards needing stable dual x8 slots.
Not ideal for: Casual users or beginners who lack BIOS experience or have non-supportive motherboards, as setup may be complex and compatibility limited.
- PCIe Version:4.0
- Number of Slots:2 x8
- Slot Spacing:20mm
- Power Supply Port:CPU4P
- Gold Plating:5U thickness
- Supports PCIe Extension Cable:Yes
- Includes Power LED:Yes
Our verdict“This card is best for users who need reliable dual x8 PCIe 4.0 expansion with stable power delivery, assuming motherboard support is present.”
JMT PCIe 4.0 x16 to x8 x8 MCIO Bifurcation Adapter Riser Card with Power Cable
This bifurcation adapter supports PCIe 4.0 x16 to x8 x8 splitting, offering high-speed bandwidth and multiple configuration options for complex setups. Compared with the JMT PCIe 4.0 x16 to 2 x8 Expansion Card, which prioritizes stable dual slots, this model emphasizes flexible lane management, making it suitable for custom multi-GPU configurations or adaptable storage setups. Its high bandwidth capacity of PCIe 4.0 x16 at 256 Gbps, combined with shielded, gold-plated connectors, ensures reliable performance across various configurations. However, successful use depends on motherboard support for bifurcation, which can be a limiting factor for some users. Installation might be complex for those unfamiliar with BIOS or hardware modifications, and the cable length options (50cm or 100cm) could be restrictive depending on case layout. This product suits advanced builders who want versatile lane splitting with high throughput.
Pros:- Supports flexible PCIe lane bifurcation for various configurations
- High-speed bandwidth with PCIe 4.0 x16 support at 256 Gbps
- Robust construction with gold-plated connectors and shielded cables
- Includes power cable for reliable operation in high-demand setups
Cons:- Requires motherboard support for bifurcation, limiting compatibility
- Installation complexity may challenge beginners
- Cable length options might not suit all cases or setups
Best for: Power users and PC builders seeking adaptable PCIe lane bifurcation for multi-GPU or storage applications, with support for custom configurations.
Not ideal for: Beginners or users with limited motherboard support for bifurcation, as setup can be technically demanding and compatibility uncertain.
- Speed Bandwidth:PCIe 4.0 x16, 256 Gbps
- Wire Length:50cm, 100cm
- Power Supply:Includes SATA power adapter cable, 12V connection
- Compatibility:Supports motherboard bifurcation PCIe splitting
- Connector Material:Gold-plated 10µ”
- Cable Material:UL certified, flat FFC, shielded
- PCB Material:UL certified, four-layer PCB
- Support:Supports PCIe 4.0, backward compatible with gen3/gen2
Our verdict“This bifurcation adapter is ideal for experienced builders wanting maximum lane flexibility and bandwidth for complex PCIe configurations, assuming motherboard support is available.”
How We Picked
These products were evaluated based on performance, build quality, ease of installation, and compatibility. Priority was given to models supporting the latest PCIe standards (4.0 and 5.0), as these offer the best future-proofing and bandwidth. Reliability and user feedback also played a significant role, especially regarding stability and power delivery. To rank them, I considered how well each riser supports bifurcation, the quality of components, and whether additional features like power ports or M.2 support are included. This approach ensures the list balances technical performance with practical usability for different user needs.| pcie bifurcation riser | Compatibility |
|---|---|
| Dual NVMe PCIe Adapter | — |
| JMT PCIe 4.0 x16 1 to 2 Expans | Supports PCIe bifurcation, Gen 3 and 4 |
| PCIe 4.0 x16 Bifurcation Adapt | Motherboards supporting PCIe 4.0 |
| 10Gtek Dual SlimSAS 8i to PCIe | PCIe 3.0/4.0, Windows, Linux, VMware |
| JMT PCIe 4.0 x16 to x8 x8 MCIO | — |
| Sintech PCIe 4.0 16X to 2 Port | Most PCIe X1, X4, X8, X16 cards; Motherboards supporting PCIe x16 Bifurcation (e.g., X299, X399, most servers) |
| PCIe 5.0 x16 to MCIO 8i SFF-TA | Motherboards with detachable PCI-E channels |
| SinLoon PCIe 5.0 X16 Expansion | — |
| PCI Express X16 to Dual M.2 NV | — |
| JMT PCIe 4.0 x16 to 2 x8 Expan | — |
| JMT PCIe 4.0 x16 to 2 x8 Expan | — |
| JMT PCIe 4.0 x16 to x8 x8 MCIO | Supports motherboard bifurcation PCIe splitting |
Factors to Consider When Choosing Pcie Bifurcation Riser
Choosing the right PCIe bifurcation riser requires understanding several key factors that influence performance and compatibility. Beyond just the number of lanes split, buyers should consider PCIe version support, cable quality, and power options. These elements determine whether a riser will work seamlessly with your hardware and provide stable, high-speed connections. Being aware of common pitfalls, like mismatched PCIe versions or inadequate power delivery, can save time and money in the long run. Here are the main factors to keep in mind:PCIe Version Compatibility
Ensure the riser supports your motherboard’s PCIe version, whether 3.0, 4.0, or 5.0. Using a PCIe 4.0 riser on a PCIe 3.0 slot limits bandwidth, while a PCIe 5.0 riser maximizes speed but may require newer hardware. Compatibility affects performance and stability, especially for high-bandwidth applications like multiple GPUs or fast NVMe drives.
Number of Bifurcated Lanes
Determine how many lanes you need to split. Common configurations include x16 to two x8 slots or x16 to four x4 slots. Over-bifurcating beyond your motherboard’s support can cause issues, so verify your motherboard’s lane support. Matching your use case—gaming, mining, or workstation tasks—guides the optimal bifurcation setup.
Cable Quality and Length
High-quality cables minimize signal degradation, especially over longer distances. Poor cables may cause instability or reduced bandwidth, which impacts performance. Shorter cables reduce interference, but may limit placement options. Choose cables with solid shielding and good connectors for reliable operation.
Power Delivery
Models with additional power ports (6-pin, 8-pin, or SATA power) provide extra stability for demanding setups. Insufficient power can lead to crashes or hardware failure under load. Always match power requirements with your components to ensure consistent performance, especially in multi-GPU or high-speed NVMe configurations.
Build Quality and Features
Look for sturdy construction, good heat dissipation, and reputable brand names. Features like plug-and-play design or integrated M.2 support add convenience. While premium models cost more, they tend to offer longer lifespan and more reliable performance, reducing the need for troubleshooting later.
Frequently Asked Questions
Can I use a PCIe 4.0 bifurcation riser with a PCIe 3.0 motherboard?
Yes, most PCIe 4.0 risers are backward compatible with PCIe 3.0 slots. However, this means you will be limited to PCIe 3.0 speeds, which may bottleneck high-bandwidth devices like multiple GPUs or NVMe drives. It’s a practical choice if you already own the hardware, but for maximum performance, matching the riser and motherboard PCIe versions is ideal.
Do I need special cables for bifurcation risers?
Most bifurcation risers come with integrated cables designed for their specific slot and lane configuration. Upgrading or replacing cables with higher-quality ones can improve signal stability, especially over longer runs. Always choose cables rated for your PCIe version and power requirements to avoid performance issues.
Is it safe to run multiple GPUs on a bifurcation riser?
Running multiple GPUs on a bifurcation riser is common, but it depends on your motherboard’s support and power supply capacity. Ensure your motherboard supports bifurcation and your power supply can deliver enough wattage. Inadequate setup can lead to instability, so verify compatibility before proceeding with multi-GPU configurations.
How important is PCIe lane support for bifurcation?
Lane support is vital because bifurcation divides the total available lanes among multiple devices. If your motherboard doesn’t support the desired lane configuration, the devices may not function correctly or at full speed. Always check your motherboard’s lane support before selecting a bifurcation riser to match your intended setup.
Should I invest in a premium bifurcation riser?
Premium models often provide better build quality, more stable power delivery, and extra features like M.2 support or longer cables. While they cost more, investing in a high-quality riser can reduce troubleshooting, minimize signal issues, and extend the lifespan of your setup. For critical or high-performance applications, a premium riser is generally worth the additional cost.
Conclusion
For most users seeking overall reliability and performance, the PCIe 4.0 x16 Bifurcation Adapter Riser Card stands out as the best overall choice. Budget builders or those experimenting with secondary setups may find the older PCIe 3.0 models sufficient. Enthusiasts demanding the fastest speeds should consider the PCIe 5.0 options, despite their higher price. Beginners or users with straightforward needs will benefit from plug-and-play models with simple installation. For specialized tasks like multi-GPU mining or high-speed NVMe arrays, focus on models with robust power delivery and flexible lane configurations. Your choice should align with your hardware support, intended use, and budget constraints.
